Accutech

Accutech

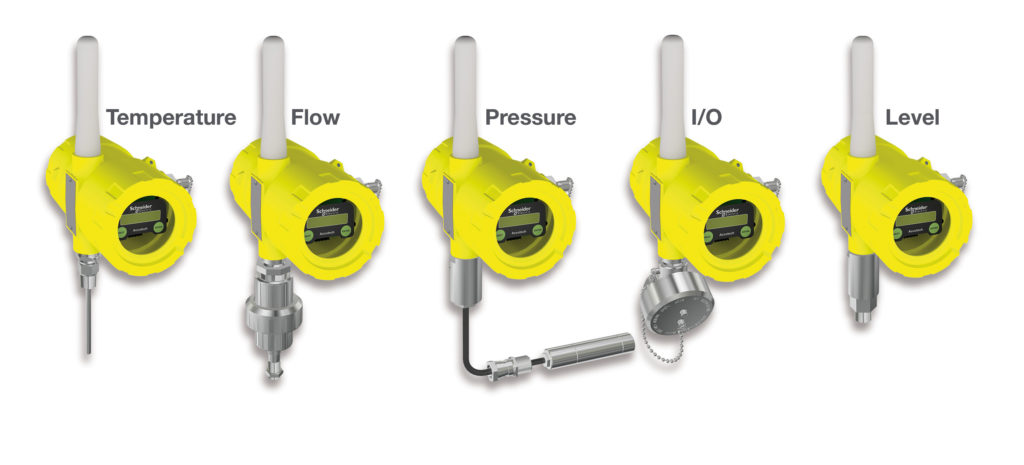

Wireless Field Units | SCADA

Download: Accutech Technical Specification Sheet

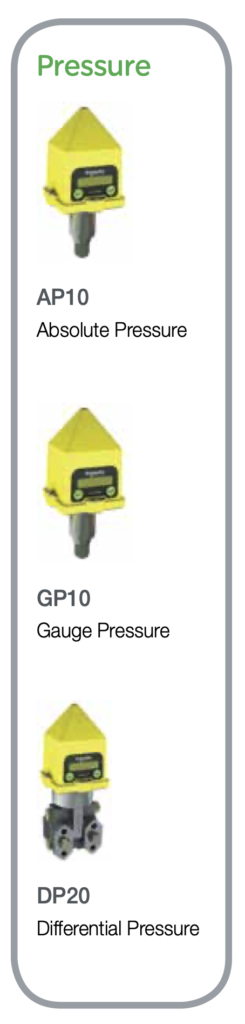

Pressure


GP10 Gauge Pressure
250 to 10,000 PSIG
±.1% accuracy of span
-40 to +250°F (-40 to +121°C)

AP10 Absolute Pressure
30 psia and 250 psia max pressure options
± 0.25% of full-scale at 20°C (68°F)
-40 to +250°F (-40 to +121°C)<

DP20 Differential Pressure
0.2% of URL
±100 inH2O; ± 300 inH2O; ±25 psi; -25psi to 100psi; -25psi to 300psi
-40 to +220°F (-40 to +104°C)

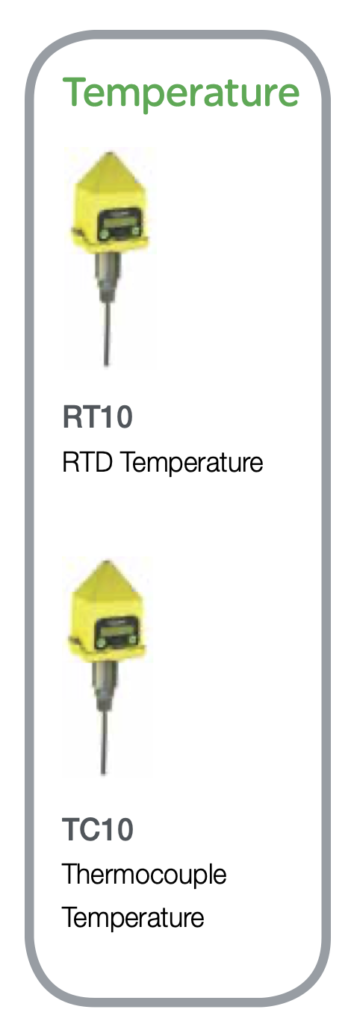

Temperature


RT10 RTD Temperature
-200° to 800°C (-330° to 1470°F)
± 0.1 % of reading
4 wire 100 or 1000 ohm DIN RTD

TC10 Thermocouple Temperature
± 0.1% of full-scale reading
Options: 0° to 760°C; 0° to 1260°C; 0° to 1480°C, 0° to 370°C

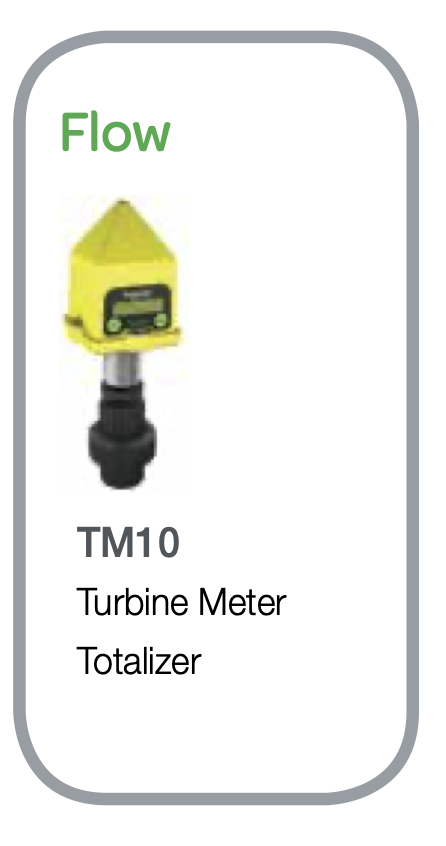

Flow


TM10 Turbine Meter Totalizer
Instantaneous flow & totalised values
±0.01% of reading
40 to +85°C (-40 to +185°F) d

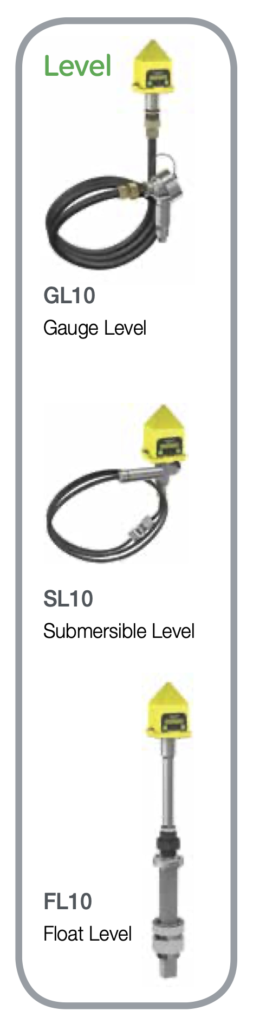

Level


GL10 Gauge Level
250 to 10,000 PSIG
±.1% accuracy of span
-40 to +250°F (-40 to +121°C)

AP10 Absolute Pressure
30 psia and 250 psia max pressure options
± 0.25% of full-scale at 20°C (68°F)
-40 to +250°F (-40 to +121°C)<

DP20 Differential Pressure
0.2% of URL
±100 inH2O; ± 300 inH2O; ±25 psi; -25psi to 100psi; -25psi to 300psi
-40 to +220°F (-40 to +104°C)
