Butterfly Valves and Actuators
Actuators
Pneumatic
The scotch-yoke principle in the EB actuators exactly matches the valve torque characteristics.


Pneumatic Linear
This series of linear pneumatic actuators are designed to automate knife gate valves. Available in 6 sizes and different stroke lengths.

Electric
A compact series of actuators for open/close and control functions. Modular System E65-E210 designed to automate control valves.


Valves

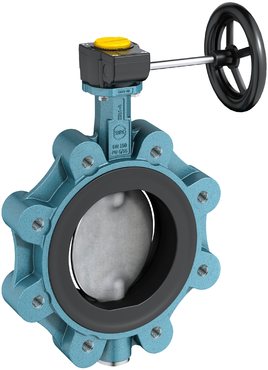

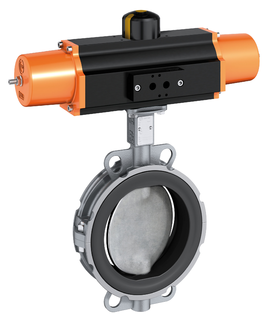

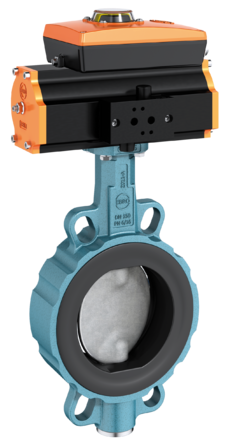

Resilient Seated Valves | Centrally mounted, resilient seated shut-off and control valves are almost universally usable. EN 12266 (Leakage Rate A).

- Body: 3/4″-16″ Cast Iron; 18″-24″ Ductile Iron
- EPDM/NBR liner
- Max 16 bar; -40 °C to + 200 °C
- Various applications

- Body: 3/4″-24″ Ductile Iron
- EPDM/NBR liner
- Max 16 bar; -40 °C to + 200 °C
- End of line applications

- Size: DN 2″-12″
- Body: 316SS / DIN 1.4408
- EPDM liner
- Max 10 bar; -40 °C to + 200 °C
- Food and beverage industry

- Size: DN 2″-12″
- Body: 316SS / DIN 1.4408
- EPDM liner
- Max 10 bar; -40 °C to + 200 °C
- Food and beverage industry

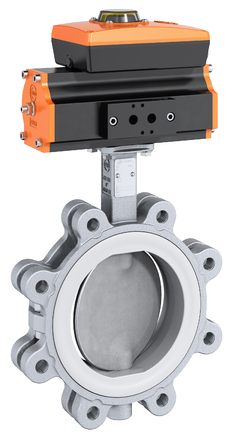

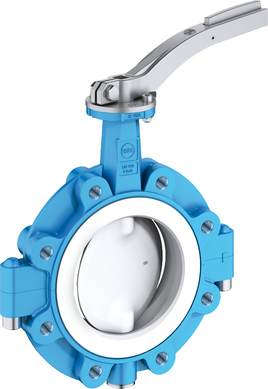

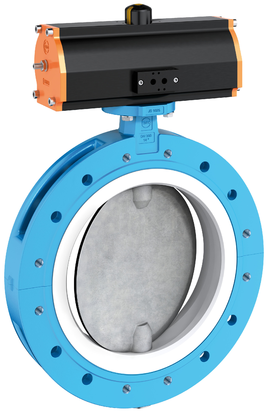

PTFE Valves | PTFE-lined shut-off and control valves are designed for use in chemically aggressive leaches and acids. The minimum 3 mm thick lining comprising virgin PTFE ensures optimal permeation protection. EN 12266 (Leakage Rate A).

- Size: 2″ – 12″
- Body: Ductile Iron STM A395/GGG 40.3
- M-PTFE (TFM/NXT) Liner
- Max 10 bar; -40 °C to + 200 °C
- Vacuum: Up to 1 mbar absolute; -10°C to +160°C
- For chemicals and high-corrosive media

- Size: 14″ -24″
- Body: Ductile Iron ASTM A395/GGG 40.3
- M-PTFE (TFM/NXT) Liner
- Max 6 bar; –40 °C to + 200 °C
- Vacuum: 500 mbar absolute (with silicon elastomer inserts)
- Shut-off and Control Services in the chemical industry

- Size: 2″ – 12″
- Body: Ductile Iron ASTM A395/GGG 40.3
- M-PTFE (TFM/NXT) Liner
- Max 10 bar; -40 °C to + 200 °C
- Vacuum: Up to 1 mbar absolute; -10°C to +160°C
- For chemicals and high-corrosive media
High Performance | High operating pressures and extreme temperatures. EN 12266 (Leakage Rate A/B).

- Size: 2″ – 24″
- Body: Cast Steel As16-WCB/ 316SS
- Working Pressure 285 PSI; –60°C to +600°C
- Vacuum: Up to 1 mbar absolute
- High pressure and temperature applications

- Size: 2″ – 24″
- Body: Cast Steel As16-WCB/ 316SS
- Working Pressure 285 PSI; –60°C to +600°C
- Vacuum: Up to 1 mbar absolute
- High pressure and temperature applications

- Size: 2″ – 12″
- Body: Ductile Iron ASTM A395/GGG 40.3
- M-PTFE (TFM/NXT) Liner
- Max 10 bar; -40 °C to + 200 °C
- Vacuum: Up to 1 mbar absolute; -10°C to +160°C
- For chemicals and high-corrosive media
