Product Overview
Honeywell Industrial Flame Monitoring (IFM) products offer reliable, durable and flexible solutions for the most challenging applications and toughest environments. They are designed for the highest level of function and flame discrimination for a wide array of industrial processes and applications.
Available Services
- Startup & Commissioning
- Scanner Alignment
- Complete Reports
- Processor Parameter Selection
- Process Walk
Contact Us Today!
Email: support@cpacificc.com
Phone: 808-450-2483
All-in-one Processor/Viewing Head


- Combination Signal Processor & Flame Scanner
- 3 Sensors: UVtron, IR, UVSS (Solid state)
- MODBUS & RS422 Communications
- MODBUS & RS422 Communications
- Integral Touch Screen Interface
- Temperature Sensing
- FM, CSA Approved

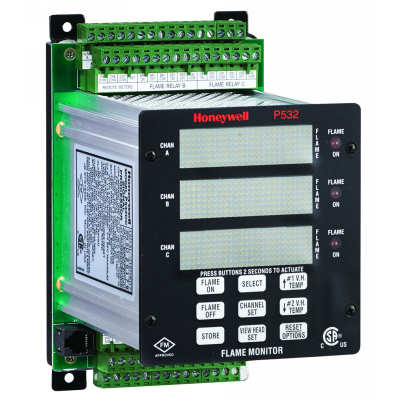

Dual Processor


- Monitors two S55XBE Scanners Simultaneously
- One Additional S70X/S80X Scanner
- AC & DC Power Options
- MODBUS & RS422 Communications
- UV & IR Spectrum Displayed Simultaneously
- Temperature Alarming
- FM, CSA Approved

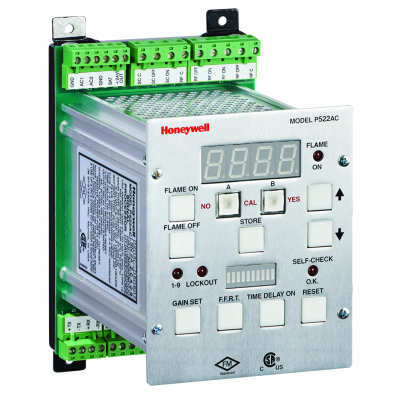

Two Channel Processor


- Connect Two Flame Scanners (Monitor One At A Time)
- AC & DC Power Options
- MODBUS & RS422 Communications
- Viewing Head Temperature Indication
- FM, CSA Approved

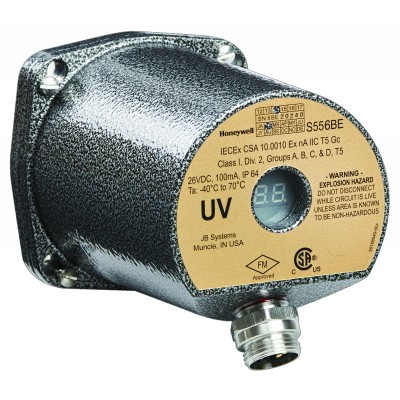

Viewing Head – Multiple Sensor Options


- Replaces older S550B, & S550 Series
- IR/UV, IR only and UVTron only
- Electronic check (no mechanical shutter) for self-check of the system
- Numeric two-digit display
- Quick disconnect cable (order separately) for non-PF models
- Mountable in any orientation.
- Includes an embedded temperature sensor

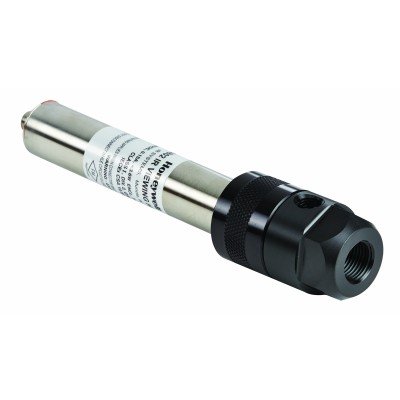

Viewing Head – Single-fuel Applications


- IR Compact Scanners
- UV Compact Scanners
- Single Burner & Ignitor Applications
- electronic check (no mechanical shutter) for self-check of the system
- NEMA 4X
Gas Igniters


- GHE1-3 MMBTU/HR-GHE2-5
- Non-fouling
- Maintenance-free
- Multi-stage ignition
- Self-cleaning spark tip
- Powerpack 110 or 220 VAC

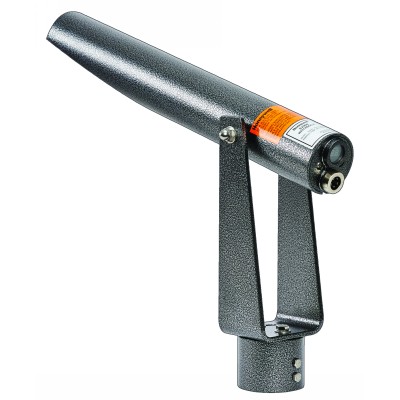

Flare Stack Monitoring System


- The system consists of a P222 signal processor and S256BE viewing head with a 50-foot interconnecting cable
- Immune to sunshine, rain, and clouds
- Easy to set up with multiple LEDs and pushbuttons.
- Lightweight and low power consumption.
