Katronic

Katronic

Katronic’s excellent reputation has been built on offering accurate and intuitive clamp-on flow meters supported by market-leading customer service and technical support.


Portable

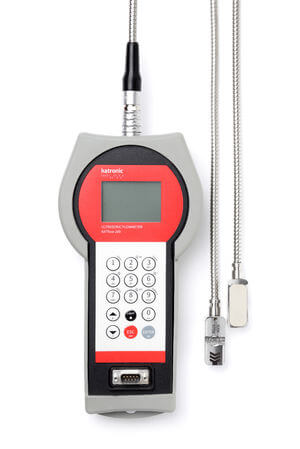

KATflow 200

Hand-Held Clamp-On Ultrasonic Flowmeter
  • Lightweight and tactile
  • SS sensors, cable, and connectors
  • Quick and intuitive programming
  • Full instrument diagnostics and scope function
  • Up to 100,000 measurement data logger and software for sampling and data transfer
  • Standard and high-temperature pipe wall thickness

KATflow 210

Integrated Clamp-On Ultrasonic Flowmeter
  • Three different measurement modes to maximize battery life
  • Up to 100,000 measurement data logger and software for sampling and data transfer
  • IP 68 SS sensors, cable, and connectors
  • Output current, open-collector, or relay
  • Integrated pipe wall thickness gauge available
  • Optional wireless data transmission

KATflow 230

Flexible Clamp-On Ultrasonic Flowmeter
  • Various input and output options
  • PT100 inputs for heat quantity (energy) measurement
  • Up to 100,000 measurement data logger and software for sampling and data transfer
  • SS sensors, cable, and connectors as standard
  • Three different transport case options including special IP 67 version
  • Standard and high-temperature pipe wall thickness

Fixed Installation

KATflow 100

Standard Clamp-On Ultrasonic Transmitter
  • Low cost of ownership
  • Multiple inputs and output options available
  • PT100 inputs for heat quantity (thermal energy) measurement
  • Bi-directional measurement with totalizer function
  • Quick and intuitive programming

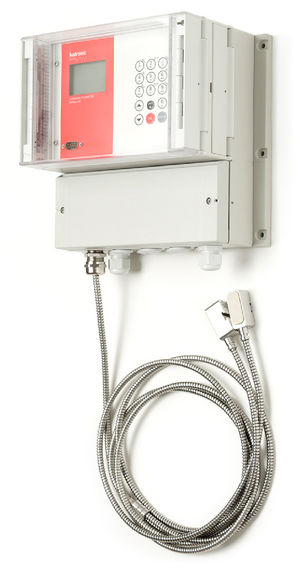

KATflow 150

Advanced Clamp-On Ultrasonic Flowmeter
  • Dual flow monitoring with the sumaveragedifference and maximum calculations
  • Output current, open-collector, or relay
  • Communication options RS 485, Modbus RTU and HART* compatible output
  • Current inputs for temperature, pressure and density compensation
  • Up to 100,000 measurement data logger and software for sampling and data transfer
  • Optional heat quantity (thermal energy) measurement functionality

* HART® is a registered trademark of the HART Communication Foundation

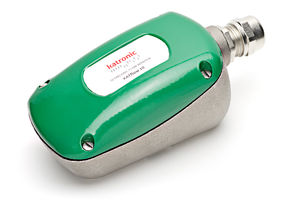

KATflow 10

Clamp-On Ultrasonic Flow Monitor
  • Small size
  • Quick and simple installation
  • No complicated process connections
  • Low purchase costs
  • Easy programming through dedicated software
  • For acoustically conductive fluids with particle concentration > 200 ppm

Hazardous Area

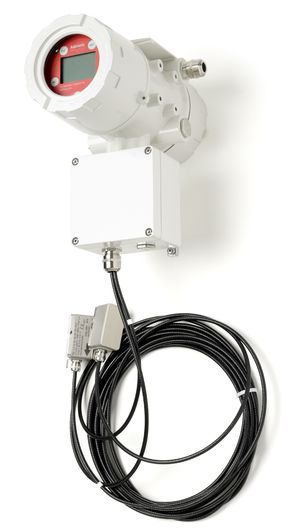

KATflow 170

Clamp-On ATEX, IECEx and EAC-Ex Ultrasonic Flowmeter
  • Dual flow monitoring with the sumaveragedifference and maximum calculations
  • IP 68 stainless steel sensors as standard
  • Optional current inputs for pressure, temperature, and density compensation
  • Up to 100,000 measurement data logger and software for sampling and data transfer
  • Output current, open-collector, or relay
  • Ex-certified Pt 100 probe for temperature compensation

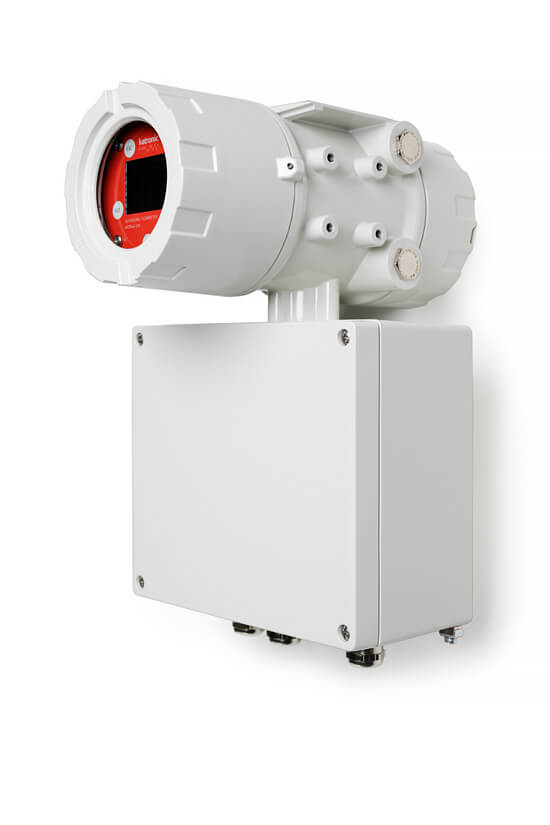

KATflow 180

Gas Clamp-On Ultrasonic Flowmeter
  • Suitable for installation in safe and/or hazardous areas
  • Shear and Lamb wave IP 68 stainless steel sensors
  • Process output options including current, open-collector, relay
  • Communication option Modbus RTU, Modbus TCP/IP
  • Inputs for temperature, pressure, and gas compressibility factor available
  • Web-based data evaluation, instrument setup via wired, wireless or GSM connection
