The future of advanced process control solutions is being powered by Magnetrol® – the level and flow expert and your preferred partner for operational efficiency, safety, and performance.
Level Control

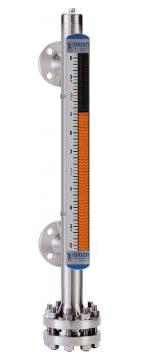

Magnetic Level Indicator


- A broad range of chamber styles
- Fabricated non-magnetic chambers
- ASME and DIN flanges
- Precision manufactured float
- Flag or shuttle type indicator

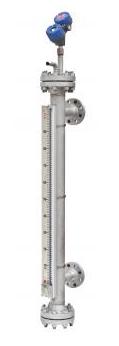

Magnetic Level Indicator


- ECLIPSE GWR transmitter
- A broad range of chamber styles
- Fabricated non-magnetic chamber
- ASME and DIN flanges
- Precision manufactured float
- Flag or shuttle type indicator

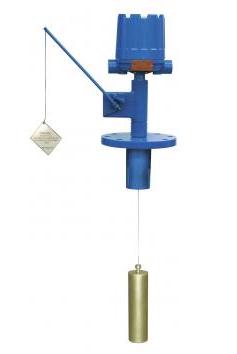

Single, Dual, and Tri-switch Series


- Displacers adjustable at any point along the suspension cable
- 20 feet (6 meters) suspension cable
- The anti-surge design (eliminates switch short cycling)
- Flanged or threaded mounting
- Easy installation
- Field adjustable set point and switch differential

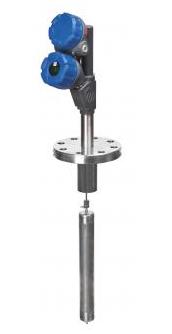

Liquid Level Transmitter


- SIL Certified, SFF value of 90.6%
- No calibration required; configuration only
- Available with 4–20 mA and HART® 6.x with PACTware™ PC software and the Field Device Tool (FDT); AMS ready
- Foundation fieldbus™ option with PID block and Link Active Scheduler (LAS) capability
- Comprehensive diagnostics with faults, warnings and status history
Single & Dual-Point Ultrasonic Level Switches


- No calibration required
- Advanced diagnostics
- LED interface
- Manual output testing (pushbutton)
- Adjustable time delay
- Pulsed signal technology
- Extensive FM, CSA and ATEX explosion-proof and intrinsically safe approvals
- Suitable for Safety Integrity Level (SIL) 2 loops

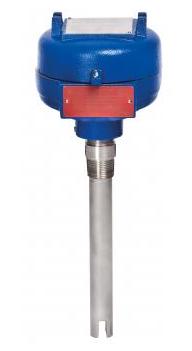

Ultrasonic Level Switch


- Measures within 0.25″ from the end of the tip
- 10-amp DPDT gold flash, 5-amp DPDT hermetically-sealed relay
- Field selectable failsafe
- FM, CSA and ATEX approval for hazardous locations
- No calibration required
- 316 stainless steel transducer

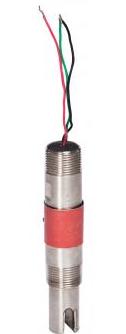

Compact Economical Ultrasonic Level Switches


- Pulsed electronics (immunity from electromagnetic noise)
- Drains viscous liquids, ignores foam
- Suitable for SIL (Safety Integrity Level) 2 loops (FMEDA analysis data available)
- Compact unit
- No calibration required
- 1-amp SPDT relay output (940), 8/16 mA current shift output (941)
Flow Control

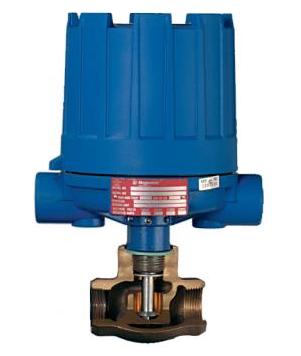

Disc-actuated Mechanical Flow Switch


- No calibration required
- Up to 1150 PSIG
- +750°F (+400°C)
- Actuation on increasing or decreasing flow
- In-line mounting
- Flow lines from ¾” to 2”

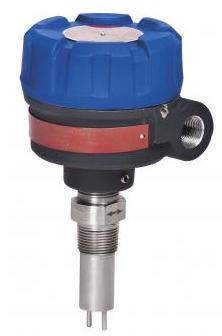

Thermal Dispersion Switch


- Temperature-compensated
- Continuous diagnostics
- Non-linear output signal can be used for trending, diagnostics, and repeatable flow/level indication
- Detects minimum/presence/absence of flow
- Excellent low flow sensitivity
- Simple calibration / installation
Flow/Level/Interface Switch with DIN Rail


- Easy field calibration
- Variable flow/flow/no-flow detection (gas and liquid)
- Excellent low flow sensitivity
- Continuous diagnostics
- Repeatable indication of flow rate and fault detection
- Up to +850 °F (+450 °C) and 6000 psi (413 bar)
